Dougie's Dog Bar

Discover how Crunchy Tech transformed Dougie's Dog Bar in Orlando with a 16-foot outdoor LED wall, 5-zone QSC audio, and intuitive iPad controls.

Client: Dougie's Dog Bar
Location: Orlando, FL
Industry: Retail
Scope: Outdoor LED Wall
Completed: 2026

16 ft Outdoor LED Wall

10 Displays

19 Speakers

5 Audio Zones

Project overview

The Dougie's Dog Bar Audio-Visual Transformation

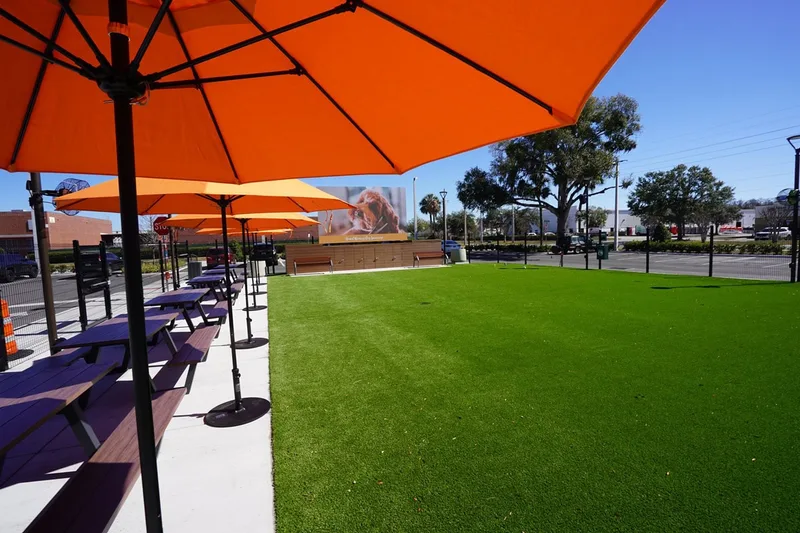

Dougie's Dog Bar is Orlando's hooman-friendly dog bar and social club for pets and their people, right in the city's lively Packing District. The venue mixes indoor and outdoor spaces with food, drinks, and dedicated play areas (including a doggie splash zone!) for a one-of-a-kind social experience. Crunchy Tech was the AV integrator tapped to deliver a complete audiovisual package that keeps the energy high for guests while standing up to the demands of a fur-friendly environment.

Project challenges

Tackling Florida Weather and Tail-Wagging Chaos

Dougie's Dog Bar isn't your average neighborhood pub. It's a multi-zone social club in Orlando built for humans and their four-legged best friends alike. We were tasked with building an AV environment that could handle everything from a high-energy bar scene to a specialized doggie splash zone.

The trick was the geography of the place. We had to manage distinct acoustic needs across an indoor kennel, a lobby, a bar hall, and multiple outdoor yards. Every piece of gear, displays and speakers included, had to be tough enough to survive the relentless Florida heat, humidity, and rain without breaking a sweat (or a circuit).

Understanding the client's needs

All the Game-Day Hype Without the Tech Headache

The team at Dougie's came to us with a clear vision: an atmosphere as full of vim and vigor as a pup at the park. Whether guests are grabbing a drink at the bar, lounging on the patio, or watching their doggos burn off calories in the yard, they needed a clear view of live sports and entertainment.

On audio, flexibility was non-negotiable. Staff needed to crank the volume for a game-winning goal at the bar while keeping the kennel area calm and stress-free for the canines. Above all, the system had to be "human-friendly," meaning staff could run the whole show from a single iPad, no AV engineering degree and no on-site tech required.

Technical solutions

One platform, integrated subsystems

Technology partner	Components	Role in project

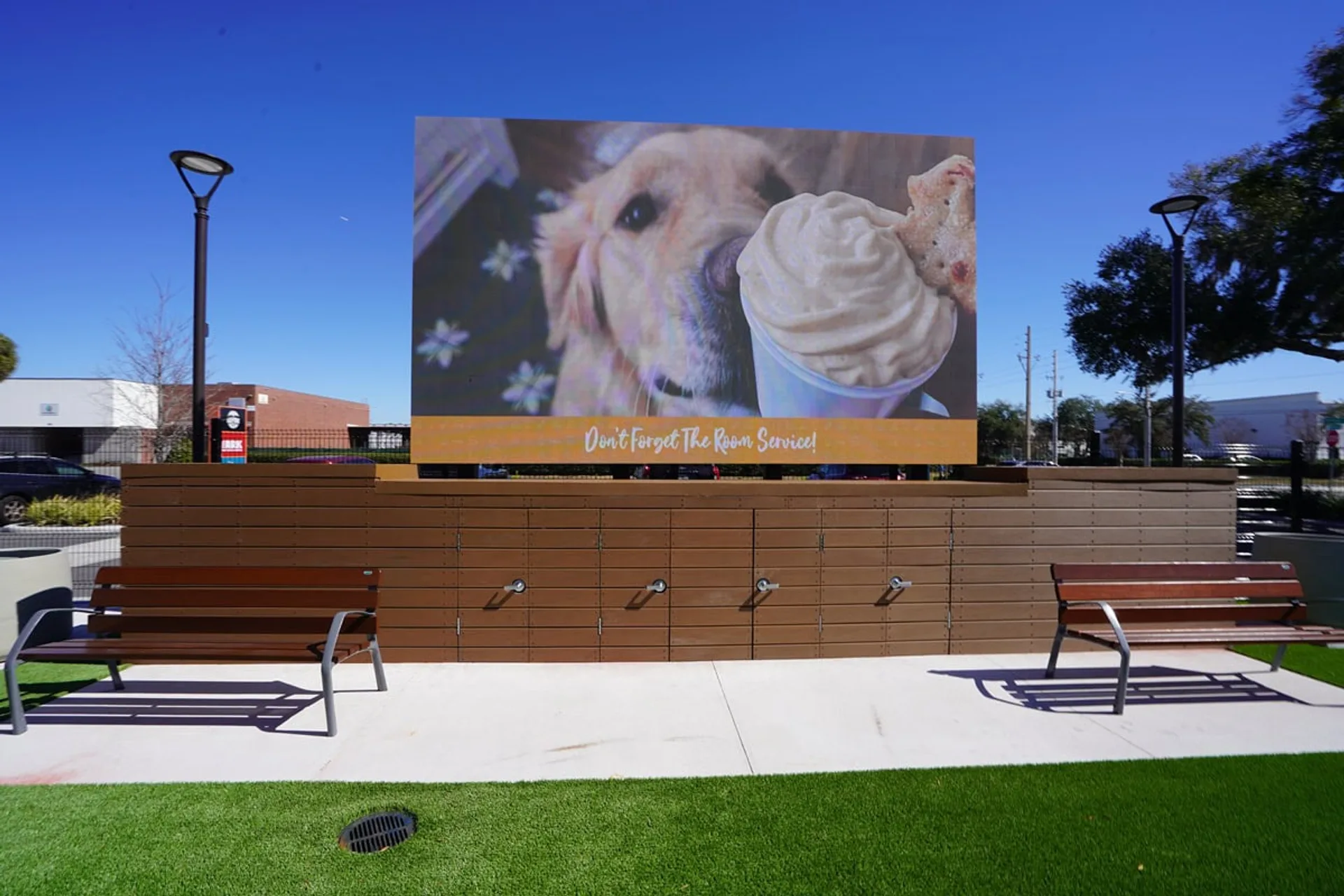

LED Display	16.4 ft × 9.8 ft 3.9 mm outdoor LED wall, LED wall processor	Large-format outdoor visual anchor for live sports, branded content and event programming
Commercial Displays	10 × Samsung BE65D-H 65” TVs, Strong tilt mounts	Distributed viewing across bar, patio, lobby and indoor spaces
Audio System	QSC Core 8 Flex DSP, 2 × QSC CX-Q 2K4 amplifiers, 19 speakers (AD-S8T, AD-S6T, AD-P6T, AD-C6T)	Five independent 70 V audio zones covering every area of the venue
Content & Control	DirecTV receivers, media player, iPad GUI, Netgear managed switch	Source selection per display, audio routing and volume control from a single iPad
Infrastructure	16U wall-mounted rack, Wattbox power conditioner, CAT6 and HDMI distribution	Centralized, clean equipment housing with reliable power management

Implementation methodology

Getting the Pros in a Room to Build a Backyard Masterpiece

We followed our signature design-build AV methodology, coordinating closely with architects and contractors from day one to make sure the tech fit the soul of the building.

The heart of the system is the QSC platform, which routes three audio inputs, DirecTV, background music, and an auxiliary line, to any of the five zones via Q-LAN. We chose specific speakers for specific jobs: pendant speakers for even coverage in the high ceilings of the indoor yard, and high-output, weather-rated speakers to cut through the open air of the outdoor pooch yard.

To keep things tidy, we centralized everything into a 16U wall-mounted rack, so the brains of the operation stay organized and easy to service.

Total Control That's Easier Than Teaching a Dog to Sit

The tablet control interface was designed for one thing: simplicity. A single home screen leads to a consolidated control page with audio source routing per zone (matrix or per-zone router), individual volume sliders and mute toggles for each of the five zones, and a master mute button. It keeps daily operation intuitive and takes specialized AV knowledge off the staff's plate.

The Ultimate Blend of Massive Screens and Bark-Proof Audio

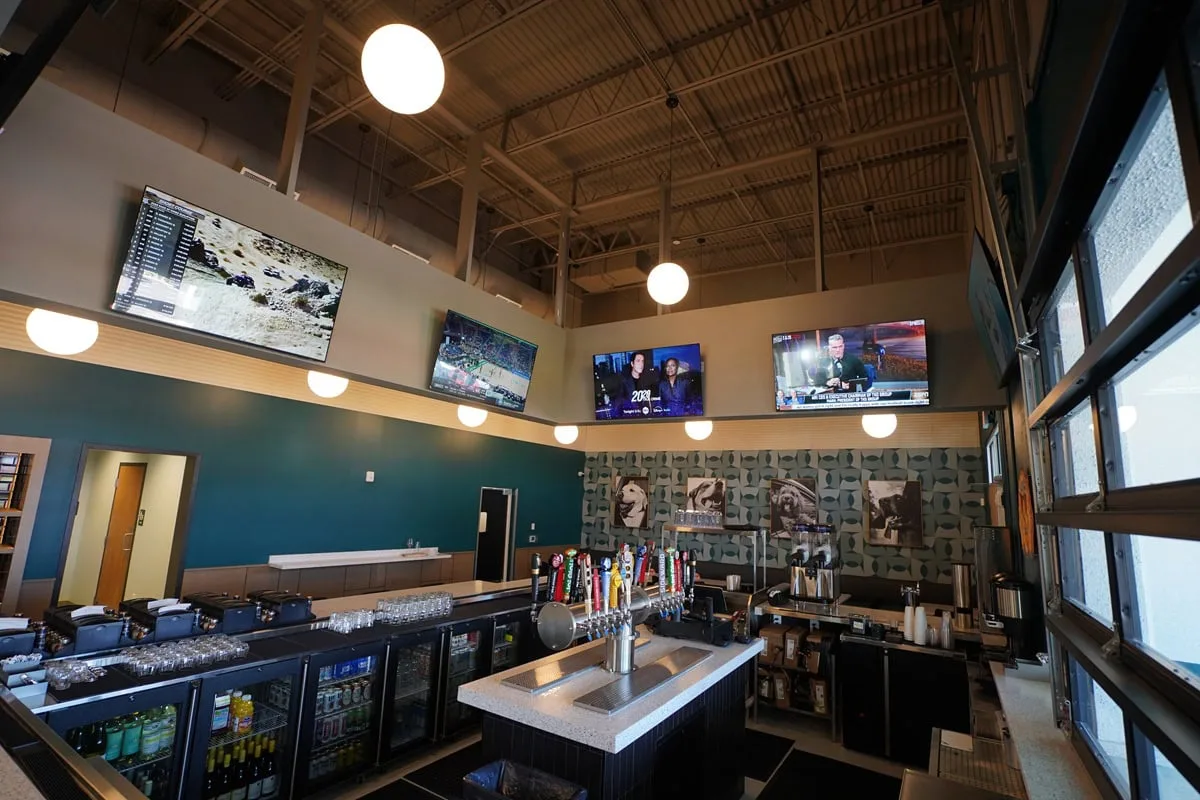

We anchored the space with a massive 16-foot outdoor LED wall and 10 Samsung commercial displays so the game is visible from every angle. Under the hood, a QSC networked audio platform powers 19 speakers across five zones.

The QSC Core 8 Flex DSP connects to both amplifiers over Q-LAN, providing three audio inputs, DirecTV, background music, and an auxiliary line, routable to any of the five zones. Each DirecTV box feeds its own TV directly, with channel and power control handled by standard DirecTV remotes at each location.

The Ultimate Blend of Massive Screens and Bark-Proof Audio

Audio Zone Breakdown

Amplifier / Channel	Zone	Speakers	Notes
AMP-01, Ch 1	Indoor Yard / Kennel	6 × AD-P6T	Pendant speakers for even coverage in the indoor play area
AMP-01, Ch 2	Lobby / Hall	2 × AD-C6T	Ceiling speakers for background audio in transition spaces
AMP-01, Ch 3	Bar	3 × AD-S6T	Surface-mount speakers delivering clear game-day audio at the bar
AMP-01, Ch 4	Patio	3 × AD-S6T	Weather-rated speakers for the covered outdoor patio
AMP-02, Ch 1	Outdoor Dog Yard	5 × AD-S8T	High-output outdoor speakers covering the open-air play area

Essential Partnership List

Samsung: BE65D-H commercial displays chosen for brightness, longevity and signage-grade reliability across all indoor and outdoor positions.
QSC: Core 8 Flex DSP, CX-Q 2K4 amplifiers and a full complement of 70 V loudspeakers providing networked audio processing, amplification and zoned coverage throughout the venue.
Strong: Wall-mounted rack enclosure and commercial tilt mounts for secure, clean display installations.
Netgear: GSM4212P managed PoE+ switch delivering reliable, centralized network connectivity for all AV endpoints.
Wattbox: WB-100-RSW-8 rack-mount power conditioner protecting equipment and allowing remote power cycling.

Results & impact

One Happy Pack: Where High-Definition Sports Meets the Ultimate Splash Zone

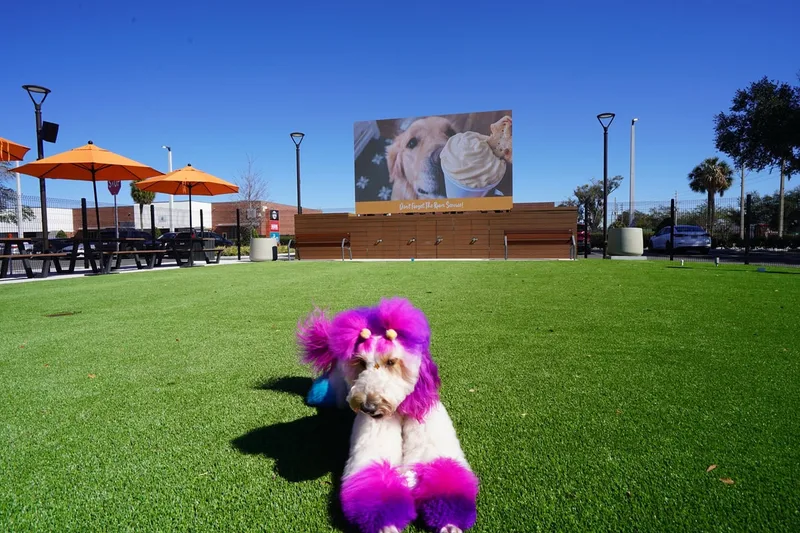

The finished system turned Dougie's Dog Bar into a true Orlando destination. The outdoor LED wall grabs attention right from the street, and the ten large-format displays mean there isn't a bad seat in the house.

With an intuitive iPad interface, simple volume sliders, and master mute toggles, the staff can adjust the vibe on the fly. It's a polished, purpose-built solution where the tech stays out of the way so the dogs (and their hoomans) can play.

Outdoor LED wall commands attention from the street
10 large-format displays — no bad seat in the house
iPad-driven audio control with volume sliders + master mute
Staff can adapt the vibe on the fly without touching the rack
Polished, purpose-built solution that keeps the tech out of the way

Finishing the project

Reliable AV for a High-Energy Social Hub

The Dougie's Dog Bar project demonstrates Crunchy Tech's ability to handle hospitality venues with non-traditional requirements. It's one thing to set up a sports bar. It's another to build a high-end, multi-zone network that can stand up to a doggie splash zone and the notorious Florida humidity.

Pairing a show-stopping LED centerpiece with commercial-grade displays and a fully networked audio system, we built a space where dogs can play, hoomans can gather, and the technology stays where it belongs, working perfectly in the background.
